American-Made • Texas Based(800) 222-5441
Precision Manufacturing

Built to perform.
Made to last.

Whether your production is automotive, appliance, industrial or ornamental, Lone Star provides the precision tooling and manufacturing support required to produce it—from custom dies and fixtures to reverse engineering, Wire EDM and CNC machining.

Request a Quote → Explore Capabilities
Tool & Die Reverse Engineering Wire EDM CNC Machining Gages & Fixturing
About Lone Star

Precision, innovation and craftsmanship.

We produce tools, dies, gages and fixtures to order based on part-print specifications. The process starts by developing an efficient manufacturing approach, then designing tooling around production volume, raw material, complexity, finish requirements and datum structure.

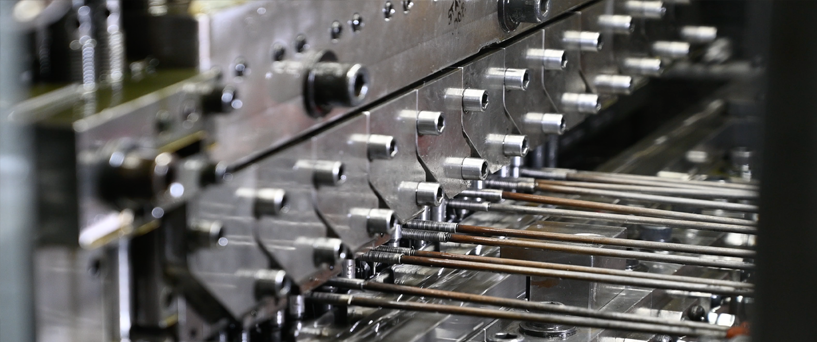

Dies can range from single-hit operations to hand transfer, progressive and complex mechanical transfer dies with integral multi-axis transfer systems.

Why Choose Lone Star?

Unmatched precision and tight-tolerance craftsmanship
Custom solutions designed around your process
Quality-focused, in-house manufacturing
Production-minded engineering and delivery
Experienced tooling and metalworking team
Services

From tooling through production support.

Advanced CNC machining and Wire EDM complement Lone Star's core tool-and-die work.

Reverse Engineering

Transform existing parts, components and tooling into accurate digital models and manufacturing-ready designs. Precision measurement and inspection support replacement parts, tooling modifications, repairs and design improvements.

Fixturing

Custom fixtures that securely locate and position parts for assembly, welding, machining and secondary manufacturing operations.

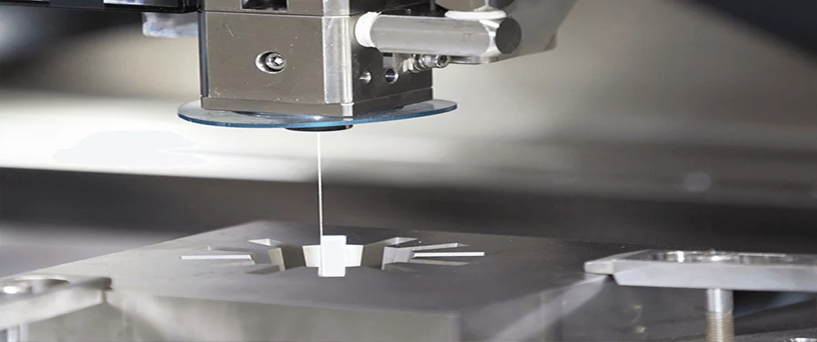

Wire EDM

High-precision electrical discharge machining for intricate shapes, hardened materials and tight-tolerance tooling applications.

Gages

Custom inspection gages from simple plug gages through more complex functional gaging for production verification.

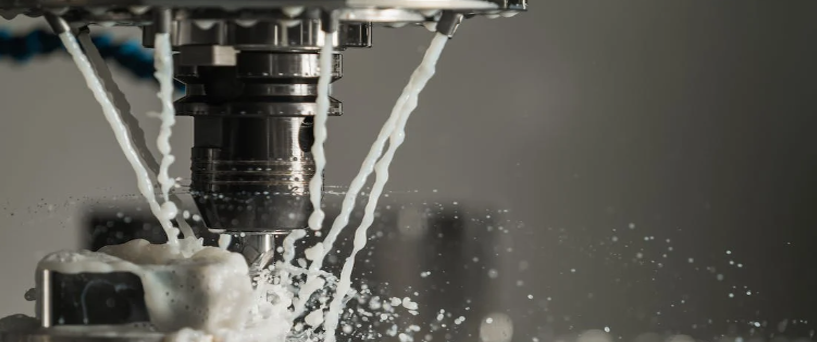

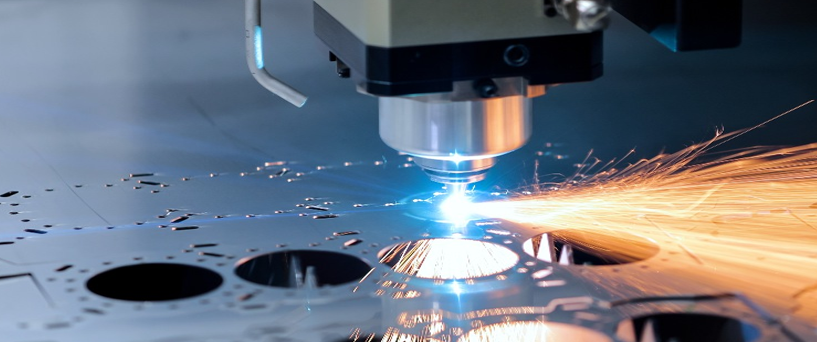

CNC Machining

CNC milling, turning and drilling for tooling, custom parts, prototypes and production components.

Grinding

Precision grinding and finishing to achieve required dimensions, surfaces and tool performance.

Capabilities

Precision tooling for custom solutions.

Design work is performed using modern 3D CAD and precision tooling methods. Reverse engineering is supported using precision inspection tools including optical comparison and CMM measurement.

Production volume, raw material, complexity, finish requirements and datum structure all influence the tooling approach.

Capability Highlights

29,000 sq. ft. facility
Single-hit, progressive, compound & transfer dies
Wire EDM for tight-tolerance applications
EDM work up to 16" thickness
Engineering changes, refurbishment & repair
Production gages and secondary-operation fixtures
Equipment

The equipment behind the precision.

Click a category to expand it. This keeps the one-page layout clean without losing the full equipment listing.

Wire EDM
  • Mitsubishi MV1200R — 15.7 x 11.8 x 8.7 travel; 31.9 x 27.6 x 8.5 max; submerged cut to 8”
  • Mitsubishi MV2400R — 23.6 x 15.7 x 12.2 travel; 41.3 x 32.3 x 12.0 max; submerged cut to 12.2”
  • Mitsubishi MV2400S — 23.6 x 15.7 x 16.5 travel; 41.3 x 32.3 x 16.3 max; submerged cut to 16”
  • Mitsubishi MV1200S — 15.7 x 11.8 x 8.7 travel; 31.9 x 27.6 x 8.5 max; submerged cut to 8”
Milling / Drill
  • PRM Radial Arm Drill Press
  • Milwaukee Mag-Drill
  • Lagun FTV-4 manual mill
  • Acer EVS-3VKH manual mill
  • Haas TM1 P — X 30”, Y 12”, Z 16”; 7.5 HP; 6,000 RPM max
  • Haas VF4 SS — X 50”, Y 20”, Z 25”; 30 HP; 12,000 RPM max
  • Haas VF11/40 — X 120”, Y 40”, Z 30”; 30 HP; 10,000 RPM max
  • Amada BRX800NC Duplexer
Turning
  • Acer E-Lathe 1740G manual lathe — 17” swing-bed, 9 5/8” swing-cross slide, 40” between centers
  • Trak 1845RX CNC lathe — 18.1” swing-bed, 9.13” swing-cross slide, 45” between centers
Grinding
  • KO Lee S718 — 6” x 18” manual surface grinder
  • Acer AGS 1230 AHD — 12 x 30, 3-axis automatic surface grinder, 14 x 1¼ wheel, 5 HP spindle
  • Acer AGS 2040 AHD — 20 x 40, 3-axis automatic surface grinder, 16 x 2 wheel, 10 HP spindle
  • Acer AGS 1636 AHD — 16 x 36, 3-axis automatic surface grinder, 14 x 2 wheel, 10 HP spindle
  • Cincinnati Milacron 1671028 retrofitted cutter grinder
  • Kalamazoo S612 belt/disc grinder
  • Palmgren 8” bench grinder
  • 36” Blanchard grinder
Inspection Equipment
  • Delronic 10X LTV Optical Comparator
  • Hexagon TIGO-SF CMM
  • Keyence XM-5000 handheld probe coordinate measuring machine
  • Multiple surface plates and contact measuring instruments
  • Creaform HandySCAN Black Elite Plus Laser Scanner
Tryout Press / Misc.
  • SN2-275-S — 275-ton 2-point gap stamping / tryout press; 9.84” stroke, 21.65” shut height
  • LaserEvo Laser Etcher
  • HydroMech Horizontal Band Saw — 16” x 16” capacity
  • DoAll 36-3 Contour Band Saw
  • 150 Ton Air/Hydraulic shop press
  • 500 ton (rated 750) Custom Hydraulic Jaw Press — 24” stroke, 85” between uprights
  • Walker AXM-7167-658 Plate Type Demagnetizer
  • MHC 40” manual leaf brake — 16 gauge capacity
  • Vulcan MIG/TIG Welder
  • Miller TIG Welder
  • Lincoln CNC Plasma Cutter
  • 2 Cress double-stack heat treat/tempering ovens
  • 48” cabinet bead blaster
  • Sunnen Horizontal Hone
  • 10 ton overhead bridge crane and 5 ton portable A-frame crane
Request a Quote

Tell us about your next project.

For tooling, machining, Wire EDM, reverse engineering, or design-service inquiries, send your request directly to our sales team.

Have drawings or specifications? Attach your CAD files, PDFs, or other supporting documents to your email.

Email Your Quote Request

Please include the following information so our team can review your project:

  • Your name, company, phone number, and email address
  • Type of service or application needed
  • Part details, material, quantities, and tolerances (if known)
  • Project timeline and any other requirements
  • Drawings or supporting files as email attachments
Email a Quote Request →

Or email sales@hodie.com directly. Please attach any files in your email application before sending.
